PBT-40Automatic nozzle cleaning machine

Process flow:

Manual feeding - set cleaning parameters - operation three-color light (green light indicates that the operation conditions meet) - cleaning pressurized operation cleaning - cleaning back sewage - room air drying - manual feeding;

By breaking up the water, a very fine water mist is generated, which forms a strong kinetic energy and sprays to the suction nozzle at the speed of sound (√=360mls), forming a continuous energy field above the suction nozzle to be cleaned.

Crush surface and interior dirt. Independent cleaning, non-destructive suction nozzle.

Field of Application:

PBT-40 automatic suction nozzle cleaning machine is an energy saving, environmental protection, batch cleaning integrated comprehensive cleaning machine, can complete automatic online cleaning, drying functions.

Mainly used in SMT workshop SMT machine suction nozzle cleaning.

Equipment features:

• Automatic cleaning mode: automatic cleaning, drying process;

• The most scientific nozzle design (patent) : nozzle height adjustable, improve cleaning efficiency, nozzle detachable;

• Adjustable nozzle pressure: solve the small nozzle in cleaning by high pressure spray conditions of collision, splashing problem;

• 40PCS suction nozzle can be put at a time, and 4PCS can be cleaned each time. Deionized water or pure water is used to clean, no need to buy liquid;

• Body material: 304 stainless steel body, acid, alkaline and other cleaning fluid resistance.

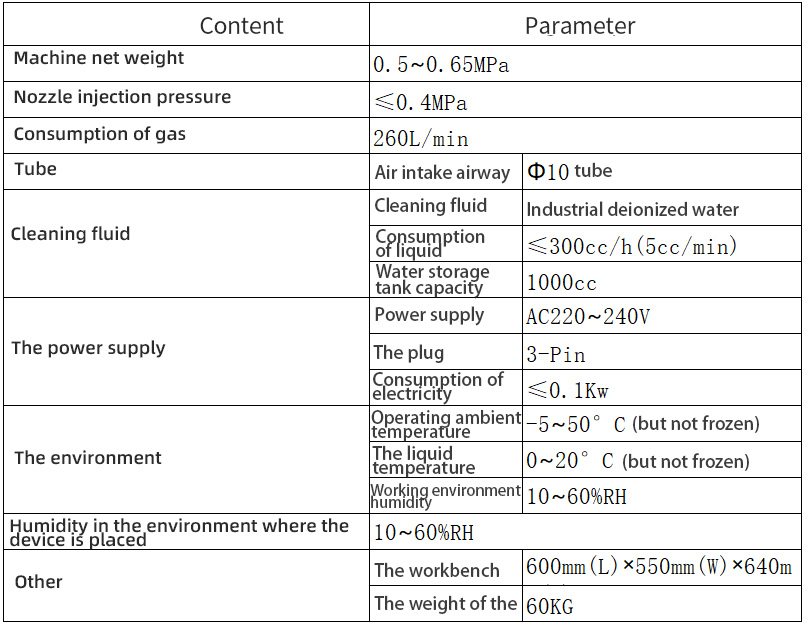

Technical parameters:
