PBT-550S Camera module cleaning machine

Process flow:

Put in the material - one button cleaning start - safety door automatically close - two fluid cleaning - centrifugal dehydration (to remove electrostatic ion wind and heating chamber assisted drying) - cleaning completed -- Alarm -- the glass door opens automatically.

Field of Application:

The PVT-550S camera module cleaning machine is suitable for precision cleaning of various camera modules and wafers.

Equipment features:

• Replaceable cleaning tray cleaning a variety of products, cleaning tray according to product customization;

• The equipment is convenient and user-friendly;

• The equipment adopts two-fluid cleaning, high cleaning precision, zero damage to the product, minimal consumption of pure water;

• Rotary spray rod to avoid secondary contamination of products;

• High speed centrifugal design, speed adjustable 100-1500r /Min;

• Equipped with electrostatic elimination device, cavity wall heating device, auxiliary cleaning to achieve the best effect;

• Equipped with 2-stage air filtration system, compressed air conforms to ISO8573.1 standard;

• Space-saving design with reduced width to reduce the area occupied by dust-free workshop;

• Stainless steel body of the whole machine, acid and alkali resistance, no pollution to the working environment, mirror case makes the equipment easy to clean up during maintenance;

• Completely clean with ultrapure water, in line with RoHS standards.

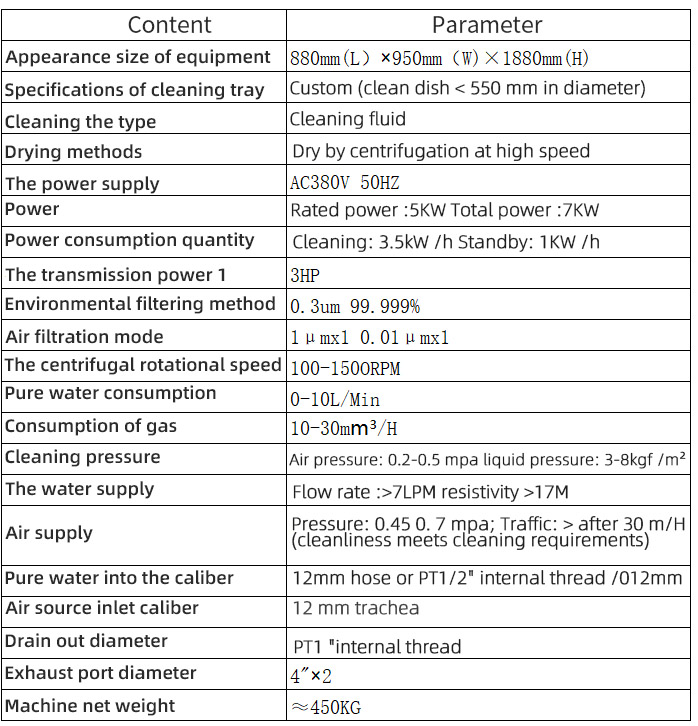

Technical parameters:
